The Internet of Toys:
ESP8266 and MicroPython

Nick Moore
@mnemote

ESP8266

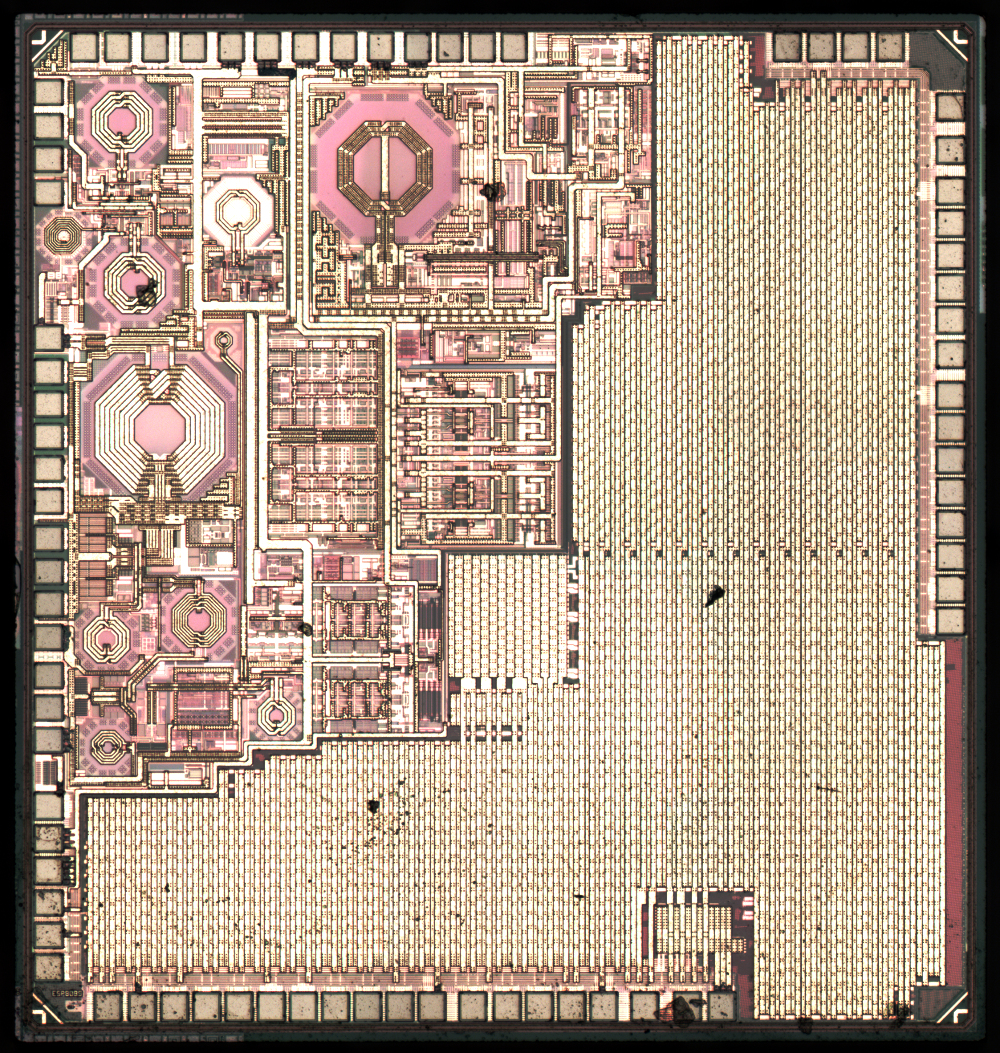

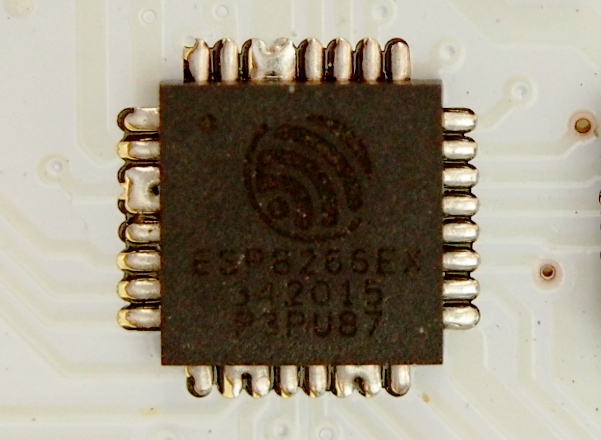

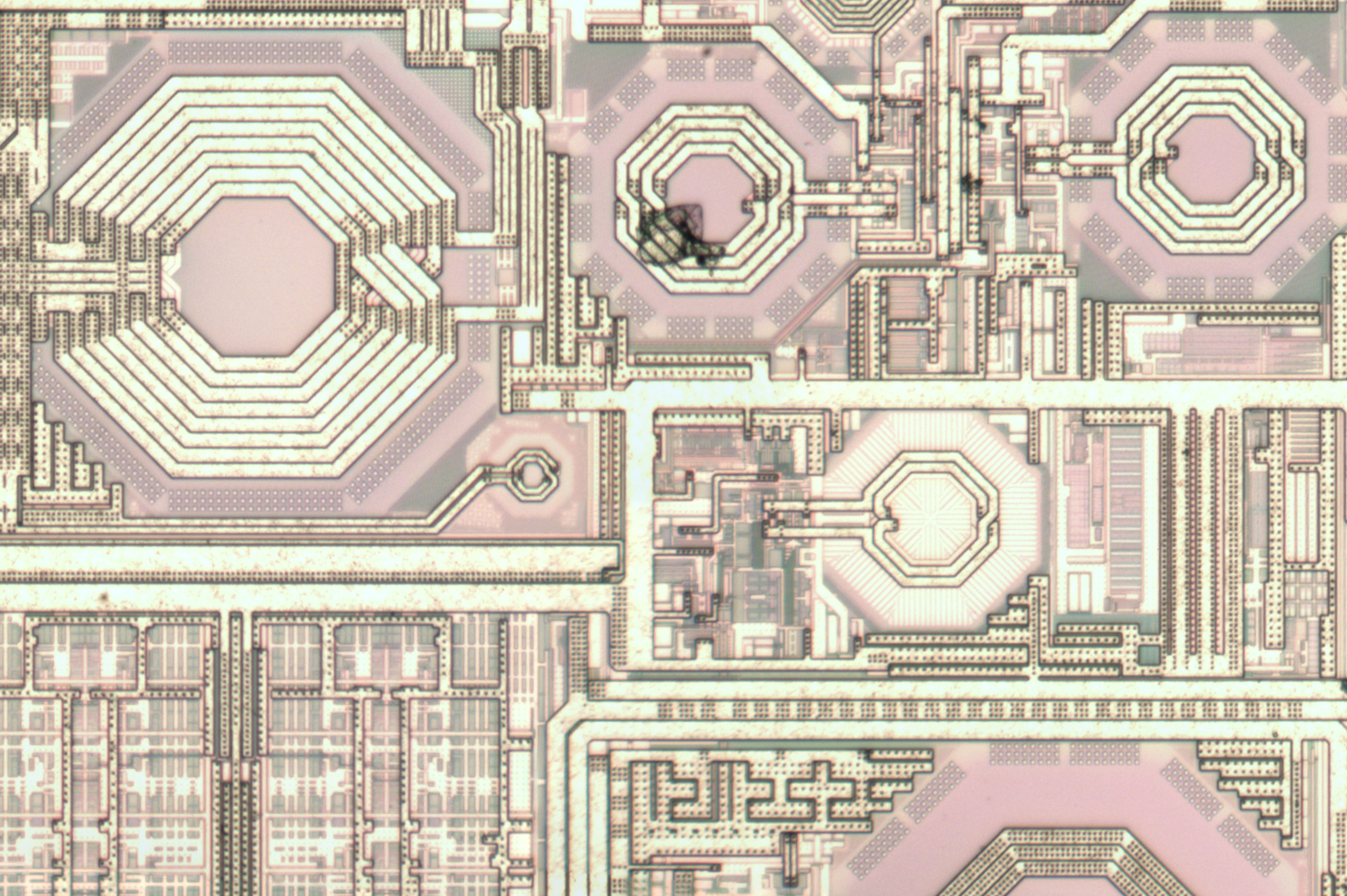

original image: zeptobars.com

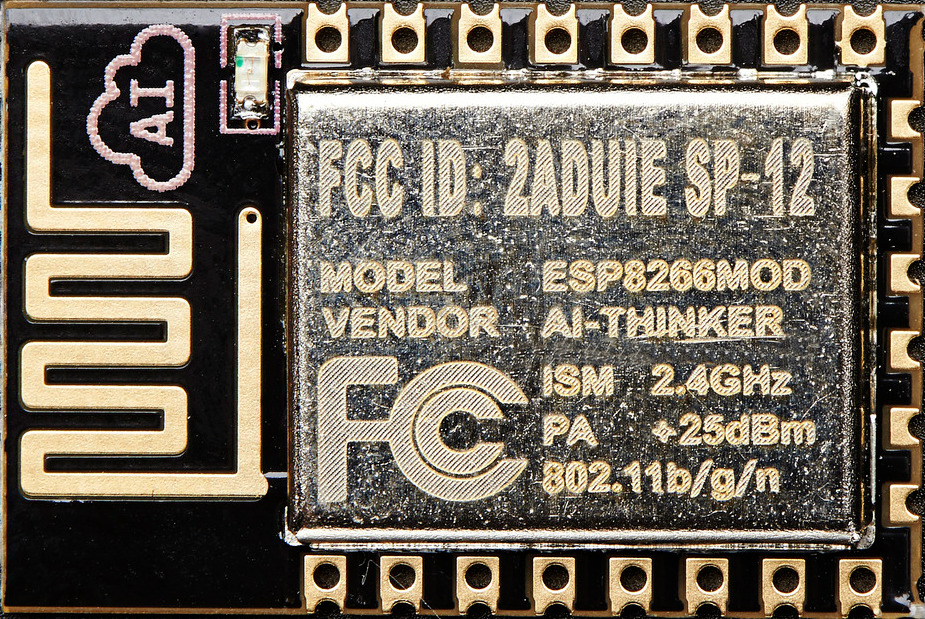

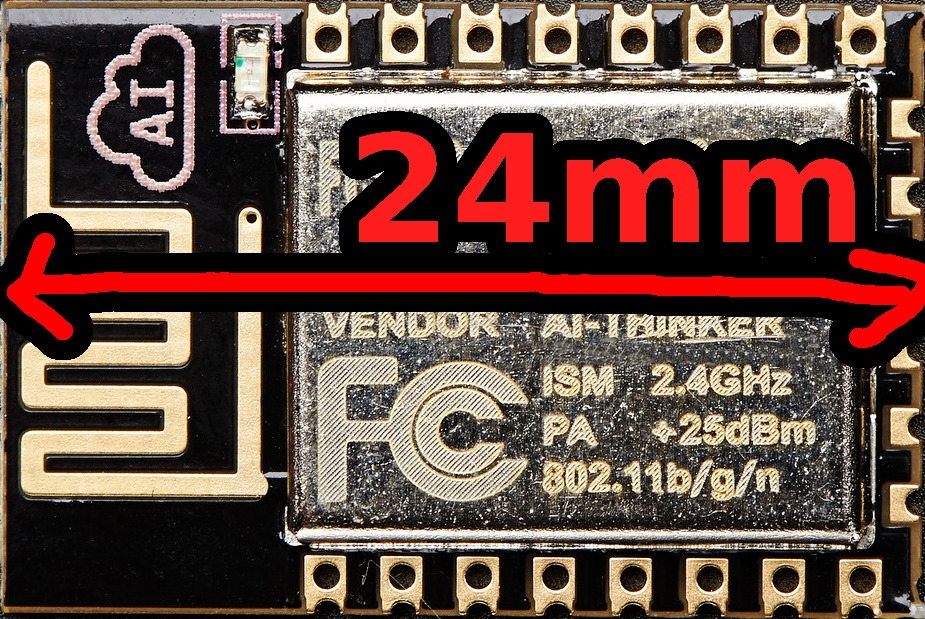

original image: acapmag.com.au

Originally came to prominence as a WiFi controller for AVR and similar, but ...

AVR (Arduino)	ESP8266	ARM / Broadcom (RPi 2)
ATMega328P	Tensilica Xtensa LX106	Cortex A53
8 bit	32 bit	32 bit
1 core	1 core	4 core
20 MHz	80-160 MHz	900 MHz
2KB RAM	160KB RAM	1GB RAM
32KB Flash	DIO/QIO Flash	MicroSDHC

original image: adafruit.com

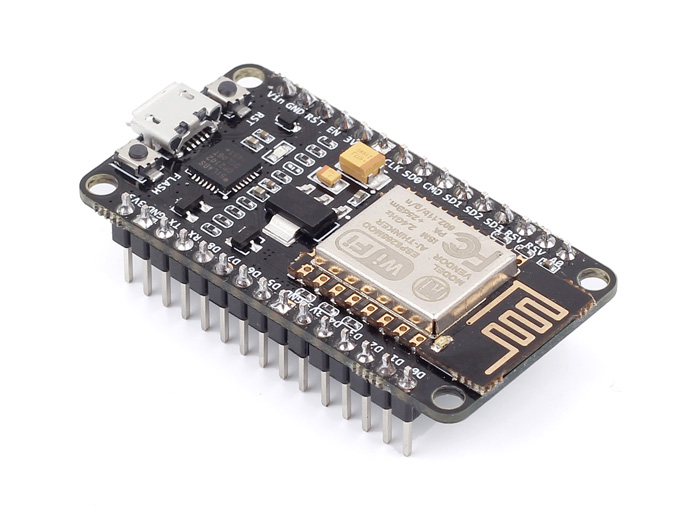

NodeMCU

image: seeedstudio.com

3.3v regulator
USB to serial interface
Automatic flash &
reset functions
Standard 0.1" headers

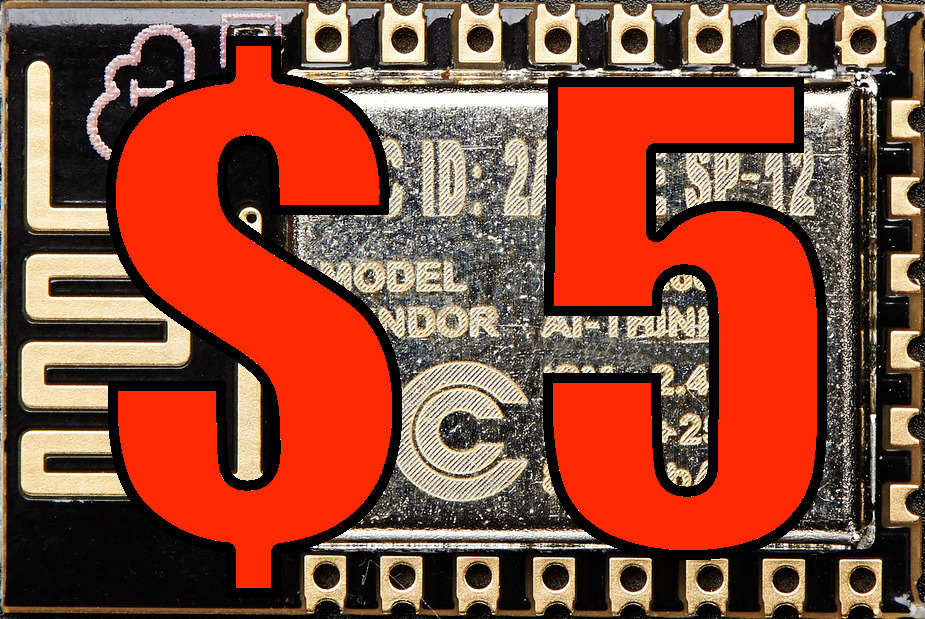

~~$8-$10~~ $3-$6 on Ebay

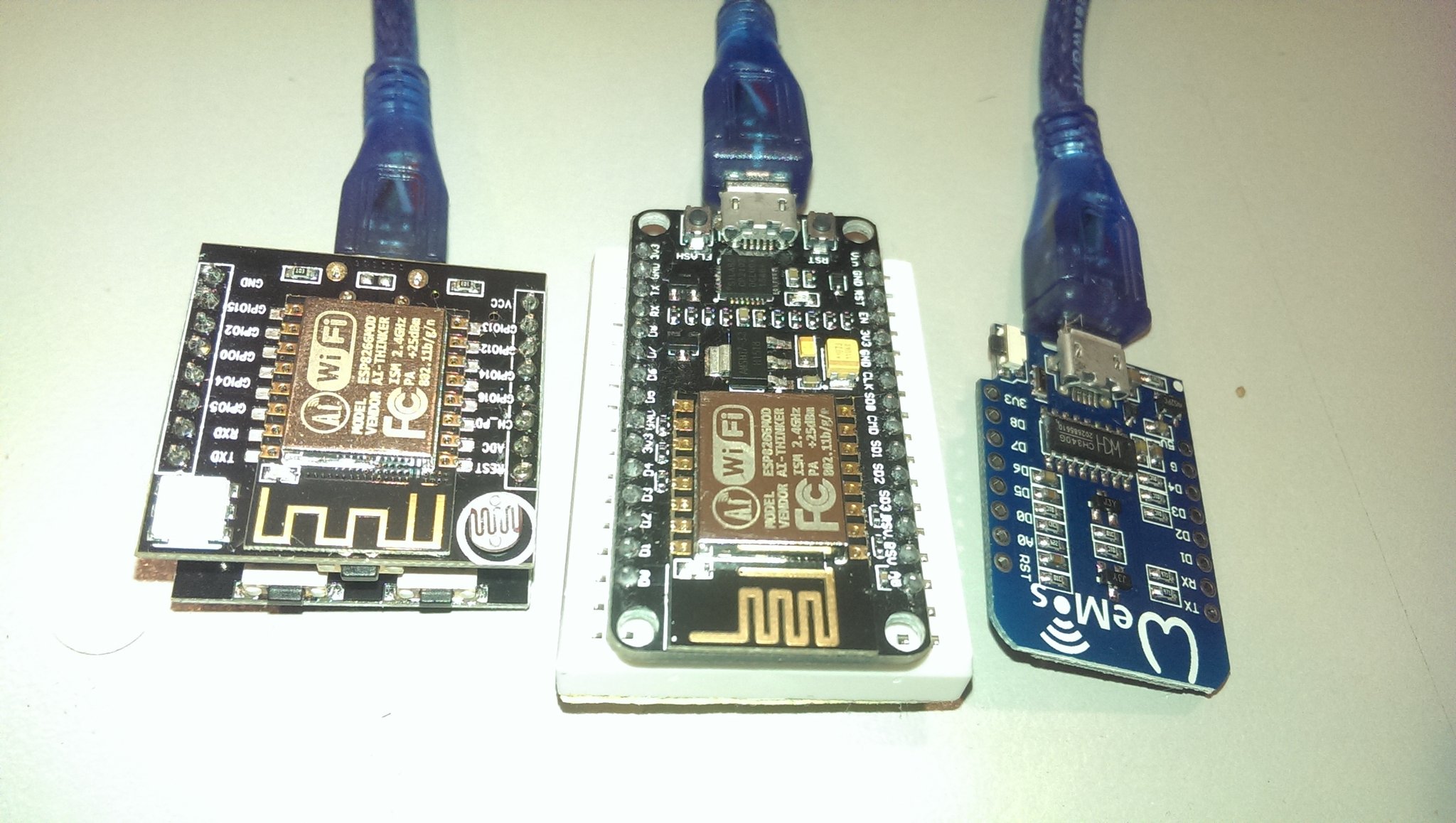

Other Boards

MicroPython

micropython.org

Download firmware from https://micropython.org/download#esp8266

esptool

github: themadinventor/esptool

$ git clone https://github.com/themadinventor/esptool.git

or

$ pip install esptool

or

$ apt install esptool

MicroPython REPL

$ cu -l /dev/ttyUSB0 -s 115200
MicroPython v1.8.5-10-g0e69e6b on 2016-10-17; ESP module with ESP8266
Type "help()" for more information.
>>> dir()
['uos', '__name__', 'gc', 'bdev', 'vfs']
>>> print("Hello, World!")
Hello, World!
>>>

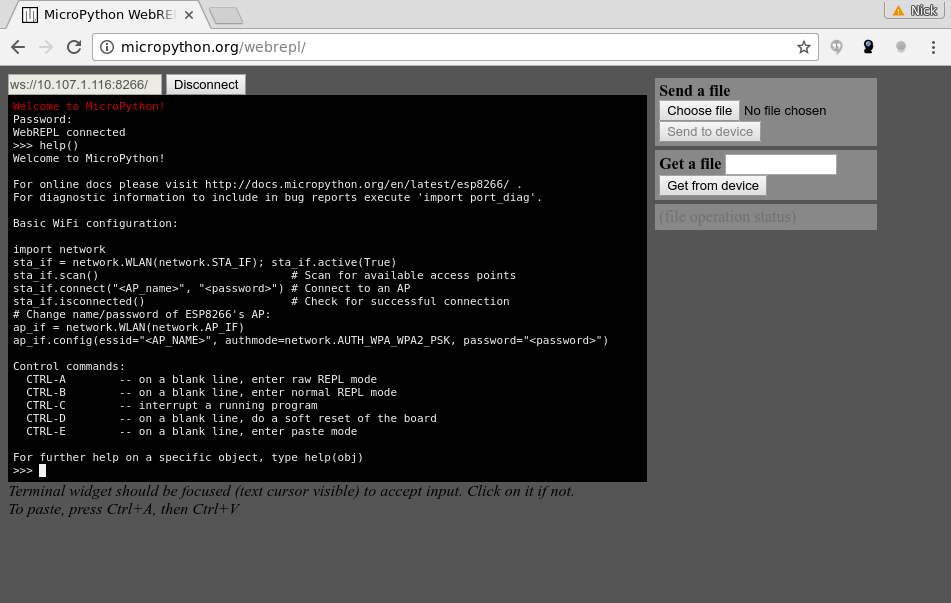

MicroPython WebREPL

MicroPython I/O

>>> import machine
>>> import time
>>> pin2 = machine.Pin(2)
>>> pin2.init(machine.Pin.OUT)
>>> while True:
...     pin2.low()
...     time.sleep(0.5)
...     pin2.high()
...     time.sleep(0.5)

What doesn't MicroPython have?

An operating system
Multiprocessing
Much memory to play with
Debugger / Profiler

Summary

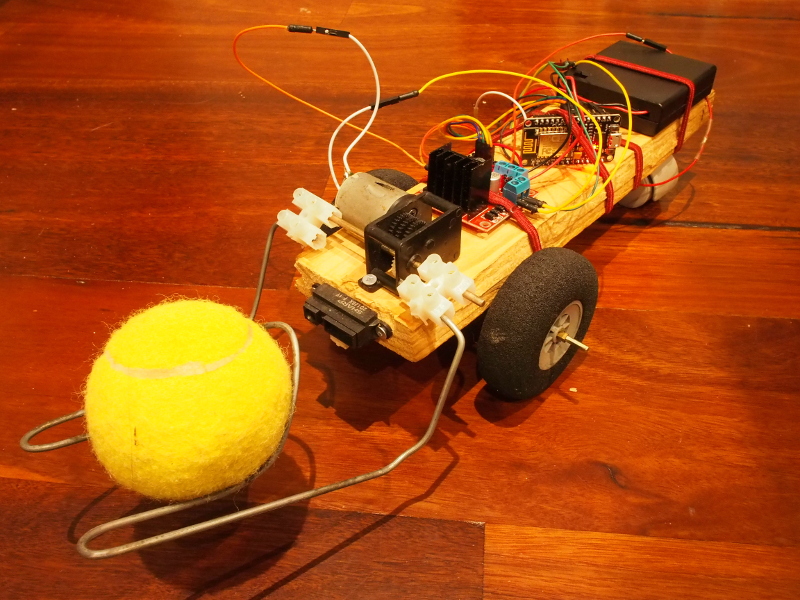

If you're interested in Microcontrollers / IoT / Robotics:

ESP8266 is about the cheapest
MicroPython is about the easiest

BuzzConf 2016

Contact

Nick Moore
Mnemote Pty Ltd

Blog Stuff:

http://nick.zoic.org/tag/microcontrollers/

Slides:

http://nick.zoic.org/buzzconf2/
