Journey Onward: the Apple 2 and me

2020-11-24 apple / games / conference
"Journey Onward: the Apple 2 and me" at EveryWorld 2020

UPDATE: Journey Onward: The Apple ][ and me is viewable on Youtube!

This is an approximate script for my talk at EveryWorld 2020, with some notes and references and credits as well.

There’s also some comments on the video production process at the end of “Decoding: the Making Of”

Journey Onward

The Apple ][ and me

G’day everyone at EveryWorld and welcome to “Journey Onward: the Apple 2 and me”.

My name is Nick Moore, I’m a freelance software consultant from Melbourne. I work mostly in Open Source Software. This is the story of how I got interested in computers in the first place

nick.zoic.org/journey

Apple 2 Logo

Journey Onward

the Apple 2 and me

First Computers

Some time in the mid 1980s, when I was just starting high school, Dad brought home an Apple 2.

Dream 6800 Image: mjbauer.biz

It wasn’t our household’s first computer: that honour went to the “Dream 6800”, a single-board computer based around the 6800 microprocessor, sporting 2K of RAM, an 18 key hexadecimal keypad and a stunning 64x32 monochrome composite video output.

The plans were published in Electronics Australia, along with instructions for assembling and programming the computer. Dad built it into an old Samsonite briefcase using a keyboard made of scavenged microswitches, with enough room left over inside for a chunky cassette recorder used to save and load files.

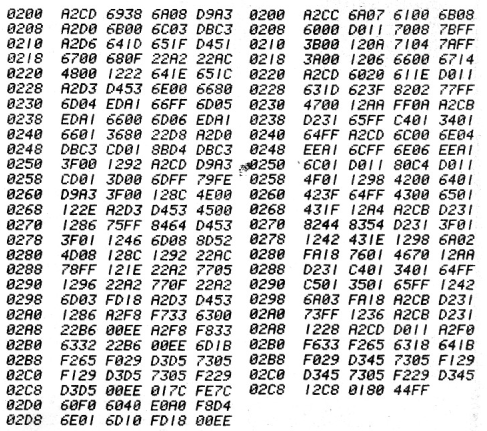

Dream 6800 listing Image: Electronics Australia, July 1979 via mjbauer.biz

Programs were published as long listings of hex digits which you could type in and run. The extrememly limited resources meant that these games generally took longer to type in than the did to play, and while they could be saved to audio cassette, restoring them was always a bit hit and miss.

Dream 6800 invaders Image: Electronics Australia, July 1979 via mjbauer.biz

The only game I remember getting working was this “UFO intercept” game, which was kind of like space invaders if there were only two invaders and they never really got around to invading.

System 80

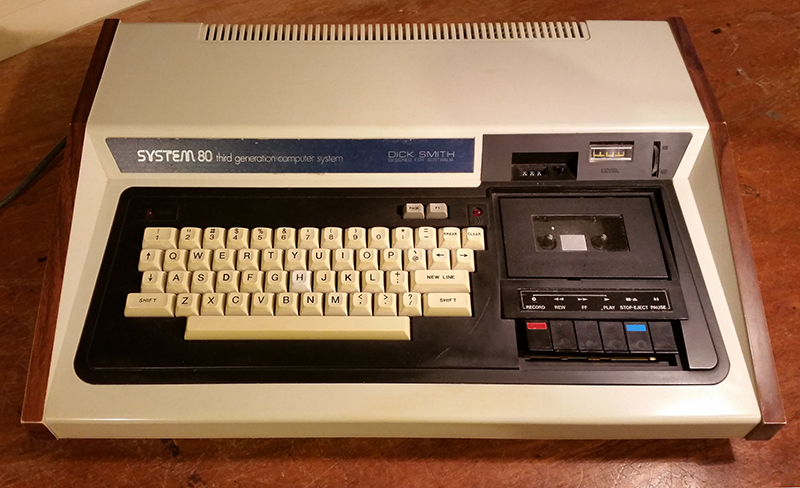

System 80 model 3 Image: classic-computers.org.nz/system-80

The Apple 2 wasn’t even our first computer with a proper keyboard: that was the “System 80”, a Dick Smith clone of the RadioShack TRS-80 Model 1. In addition to having an actual keyboard, it featured a built in cassette player to load and save programs from audio cassettes.

Ah, BASIC, and the first thrill of programming

    10 PRINT "POOP"
    20 GOTO 10

I remember spending hours colouring in graph paper to design a game for its unusual 6 pixels per character, mixed text and 128x48 graphics display. Never completed and sadly lost to time now, all I can really remember is it was a combination of the only two arcade games I was really familiar with, Breakout and Space Invaders, and it had something to do with bees.

The games are somewhat relevant to this story, the bees less so.

Apple 2

Distracted System 80

And then the Apple 2 arrived, and the System 80 was forgotten.

It was a cast-off, a cheap Apple 2 plus clone[^1], the last remaining stock left over when a friend of Dad’s decided to wind up his small import business. The case was built to the same moulded design as a real Apple 2 Plus but the plastic was a little mottled and swirly and slightly yellowish, and missing the beautiful rainbow Apple logo nameplate which would otherwise have covered the ugly injection marks on the lid moulding.

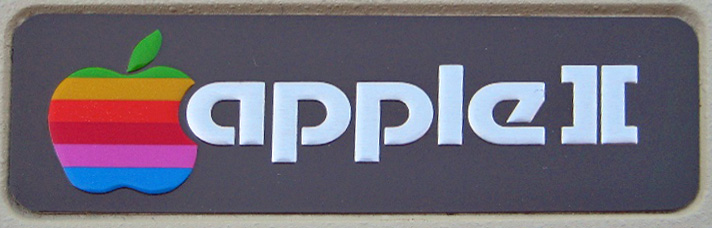

Apple 2 Nameplate Image: apple2history.org

The intellectual property laws around clones were somewhat vague at the time, as I understand it: the circuits and physical design weren’t well protected but trademarks were. The only obvious indicator that this was a dastardly clone was that the cheery but trademark-protected APPLE ][ boot message was replaced with the slightly confusing name GALAGA.

Interestingly, some software would actually check that these bytes read APPLE ][ … this is similar to the “DSMOS” protection used in OS X to this day … but we wouldn’t find this out until later when we obtained another clone, this time an ORANGE, and had to work out how to re-flash the EPROM chips which held the boot firmware so we could run ProDOS on it.

The Apple 2 was similarly specced to the System 80: a few KB of RAM, a BASIC interpreter, output to composite video. The Apple 2 graphics were somewhat better, with 280x192 “high res” graphics and colour of sorts (although ours was always plugged into a monochrome green phosphor monitor, so that detail escaped me for many years).

Apple 2 Community

But the Apple came with something else which the previous machines had not: an active community. There was no Internet on which to find technical information, in those days, but in addition to the official Apple publications there were third party books and magazine articles.

These included the surreal ramblings of the Beagle Brothers, which were kind of the Principia Discordia of the Apple ecosystem, full of dense, obscure examples and strange marginalia.

A lot of this stuff is now available thanks to the Apple II Documentation Project, including the excellent Beneath Apple DOS which contains a huge amount of information on how the hardware and software worked.

The Apple 2 was also expandable, with a huge number of Apple and third-party addons available to interface the machine to peripherals, upgrade the monitor output to 80 columns or even provide a whole extra CPU so it could run CP/M.

There was even a speech synthesizer card: SAM, the Software Automatic Mouth.

Joystick Image: applelogic.org

Simple accessories like joysticks were also available, and a whole ecosystem sprang up around the Apple.

A select group indeed Image: Beneath Apple DOS, by Don Worth and Pieter Lechner

Games

Finally we were free of cassette tapes: this machine had a Disk II controller and two 5.25” floppy drives. Unlike cassettes, floppy disks could reliably store 140kB of data … they could even access multiple files without rewinding! Disks opened up a whole new world of actually being able to save stuff.

And disks we had.

In a dusty shoebox were a pile of 5.25” floppies, mostly single sided but with an extra notch cut into the side with scissors. Thanks to the unusual “soft sector” design of the Apple drives these “flippy disks” worked pretty well, most of the time.

In the box were DOS master disks, some utilities and lots and lots of games.

You can try Apple 2 software out in your browser using the excellent apple2js, or by loading up the Apple 2 ROMs into MAME.

I have fond memories of very simple games like Moon Patrol and Hard Hat Mac; also the infuriating text adventures like Hitch-hikers Guide to the Galaxy.

I also have very confusing memories of the oddly named The Bilestoad by the even more oddly named Mangrove Earthshoe. Two axe-wielding warriors, or possibly crustacea, or maybe pastries, battle it out to the tune of Für Elise, kind of.

Another favourite was Lode Runner, a really simple platformer which showed how a simple mechanic could be used to build a fantastically complicated game. All you can do is run, climb, dig and fall. Collect all the gold and an exit ladder appears. Don’t get caught and don’t get stuck.

Out of these simple parts, hundreds of official levels were created. Plus the game included a level editor!

As you learned the tricks and techniques of the official levels, you could try out your own ideas as well, and save them to disk. You were no longer just playing the game, you were changing it, challenging your understanding as a player and a designer simultaneously.

There was also Rocky’s Boots, a strange game which taught boolean logic: It helped inspire Flobot.

Ultima IV: Quest of the Avatar

But the undisputed champion of our Apple 2 games was Ultima IV: Quest of the Avatar, which was not merely an ephemeral game, something you played for a few minutes, before bedtime, but an adventure. To conquer the game, you had to explore, fight, and build up your resources. You could even save your progress which wrote the state of the game back to a floppy disk, so once you’d done your homework and fed the dog you could select “Journey Onward” to continue your epic quest.

The game was so large it used four floppy sides, and much swapping of disks was required, with the game halting to demand a swap of disks whenever your character entered a town, or left a town, or entered a dungeon, or inevitably died in a dungeon.

You had to collect clues by talking to non-player characters in each of the 16 castles, towns and villages scattered across the land. Often a clue would just be a hint about where to find some item, or who to ask for further information, or perhaps the ingredients for a useful spell. Some of these characters would be willing to join you in your quest, if you’ve acted virtuously enough and build up enough experience, so you could build up a small party of adventurers, very handy in battle.

Of course, if things are going badly you can just choose not to save, and reset the whole machine. Software was a lot simpler back then.

The game was supposed to come with various materials and an ingenious piece of copy protection: an instruction book and a cloth map. These were difficult to photocopy with the technology of the day, and necessary to answer questions at a few key points in the game. Ours, of course, being a pirate copy, had none of the above and it wasn’t like we could just look it up on the Internet.

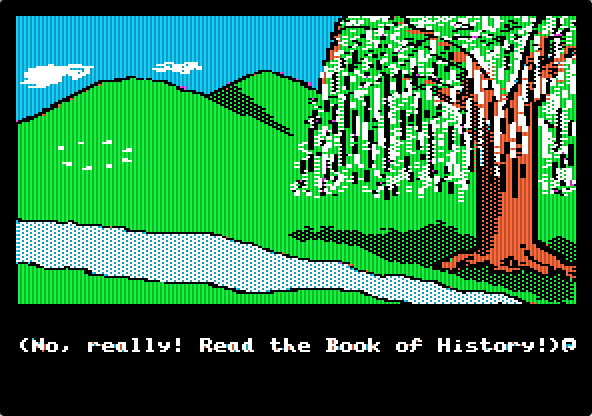

Book of History (No, really! Read the Book of History!)

Additionally, I was never the most patient or methodical of kids, and so spending hours jotting down clues and beating up on skeletons and orcs to build up enough funds for a decent sword was maaaaybe pushing it a little.

The disks aren’t included in the apple emulator above, but you can download them at wowroms and point the emulator at them. There’s also a version at virtualapple.org featuring this excellent “crack screen”:

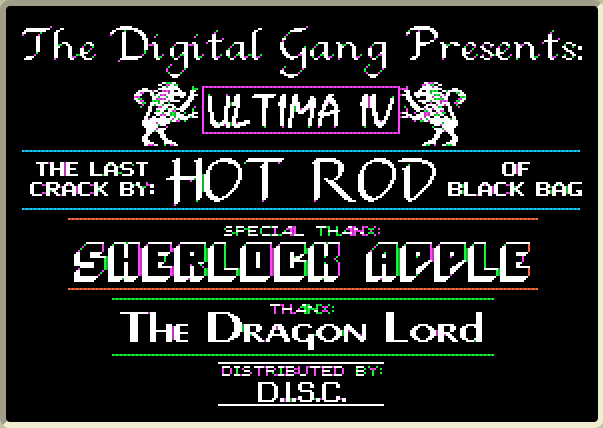

cracked ultima iv screenshot The Digital Gang Presents: ULTIMA IV THE LAST CRACK BY: HOT ROD OF BLACK BAG SPECIAL THANX: SHERLOCK APPLE THANX The Dragon Lord DISTRIBUTED BY D.I.S.C

(If you actually want to try playing Ultima IV though, the easiest way is to download the free PC/Mac version of Ultima IV from GOG.com. You don’t need to change disks all the time, the graphics are better and some gameplay bugs are fixed.)

Sector Editor

But, as luck would have it, there were some more disks in the dusty shoebox, including a sector editor

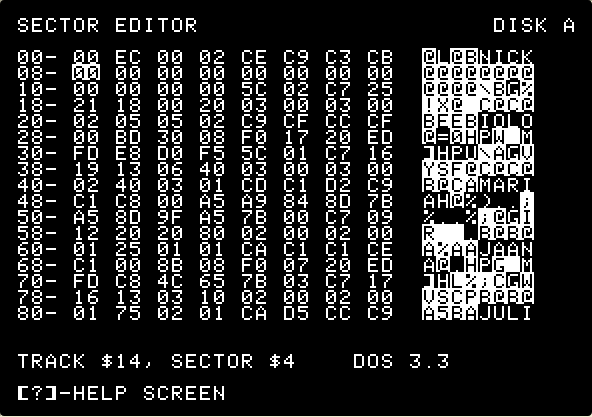

sector editor Copy II Plus Sector Editor

(Probably Copy II Plus 5, which includes a sector editor among other things. You can find it at apple2online.com)

A sector editor lets you investigate and change the contents of floppy disks. Apple 2 disks are pretty simple. They generally have 16 sectors x 35 tracks. Each sector is 256 bytes, so the total floppy size is about 140K.

Disks don’t have to have a “file system” on them as such. Instead the computer jumps to the PROM on the Disk II controller which in turn loads track 0 sector 0 into memory and jumps to it and those two tiny, 256-byte programs do the rest of the work of loading DOS or whatever other application.

Much like Lode Runner, with its level editor, which encouraged you to think as both player and designer, protagonist and antagonist, the very openness of this machine encouraged you to get in there and experiment.

There’s no encapsulation or memory protection: the boot code is free to use and abuse the disk drive hardware in any way you can think of. This led to a large number of copy protection schemes being invented, which hid extra information between disk tracks, or interleaved disk sectors in particular ways, to prevent programs from simply copying disks. This in turn led to the invention of specialized copying software which could defeat these schemes, and this arms race continues to this day.

There’s lots of details of these things out there: in those primitive times we were forced to fend for ourselves with only Beneath Apple DOS and a couple of Beagle Bros tip sheets.

Journey Onwards

We knew from all that disk swapping that the world map, and the saved game state, was stored on the Britannia disk. The Britannia disk isn’t bootable, so it doesn’t have to have any particular structure, not even a boot sector. You can’t look at the contents of this disk from DOS, but you can look at it with a sector editor.

And indeed if you create a new character, and save the game, you can use your sector editor to check out the Britannia disk and find your new character’s name stored neatly at Track $14, Sector $4, Offset $04

(but note that the character codes in caps but offset by hex 80 and terminated by 00, so NICK would be stored as CE C9 C3 CB 00.)

Nearby are many interesting values … you start off the game with 300/300 HP and there’s bytes 03 00 03 00 just near your name, and the bytes 25 21 18 00 look oddly familiar too …

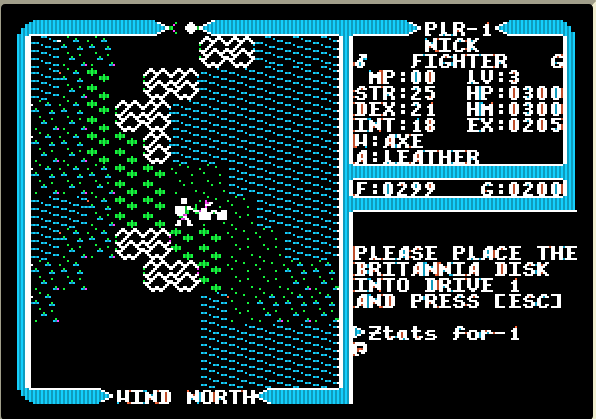

zstats0 player stats

Ethical Doubts

Let’s try setting them to something more fun, like 99 98 97 96, and then restarting the game …

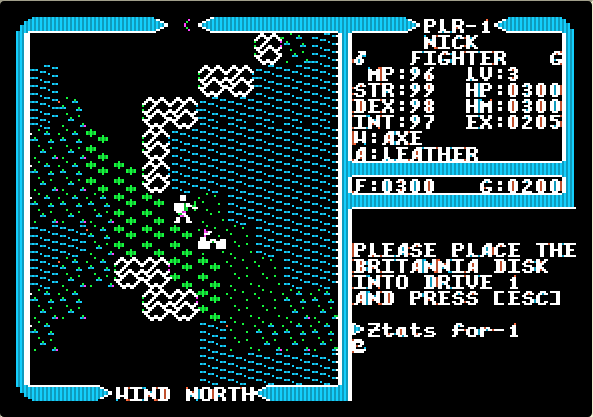

zstats1 modified player stats

OK, now we’re in business. With a bit more messing around and comparing save games we find that there’s quite a lot of things we can change in track 14 …

Offset Values Purpose
11416 C7 ‘G’ for good, or D0 ‘P’ for poisoned
14417 25 STR 25
14418 21 DEX 21
14419 18 INT 18
1441C 03 00 HP 0300

zstats2 more modified player stats

“Hang on, what?”, you might be thinking, “The 6502 is a little-endian CPU which thinks in binary. 300 should be stored as 2C 01.

Interestingly, these values are mostly stored in Binary Coded Decimal (BCD) which stores each digit 0-9 into a hex nibble. The 6502 processor supports BCD calculations through a “Decimal Mode” which makes it easy to calculate addition and subtraction of BCD numbers.

The “save” area isn’t clearly structured and is almost certainly just a write of the memory space used for keeping track of the status during the game. Writing weird values here and there certainly can make a mess of the game state, but it’s pretty easy to keep backups of the Britannia disk using the sector editor so we got stuck in.

More Save Details

Just for fun I worked out a few more disk locations:

Offset Values Purpose
14004 23 Current Longitude (hex)
14005 DE Current Latitude (hex)
14020 00 00 01 86 Number of moves made in game
14304 50 55 65 60 50 50 55 50 Virtues? 3rd one probably Valor?
14314 02 99 Party Food 299
14316 ? ?
14317 02 00 Party Gold 200
1433C 00 03 04 00 00 00 00 00 Reagents on hand
14400 00 EC ?
14402 00 02 ?
11404 CE C9 C3 CB 00 “NICK”
11414 5C 5C for Male?
11415 02 Class 2: Fighter?
11416 C7 C7 ‘G’ for good, or D0 ‘P’ for poisoned
14417 25 STRength 25
14418 21 DEXterity 21
14419 18 INTelligence 18
1441A 00 MP 0 (Magic Points, I think)
1441B 20 Level?
1441C 03 00 HP 0300 Hit Points
1441E 03 00 HM 0300 Maximum Hit Points
14420 02 05 EX 0205 Experience
14422 05 Current Weapon (Axe)
14423 02 Current Armour (Leather)
14424 C9 CF CC CF 00 “IOLO”

Also nearby are your character class, your current location, and what reagents you have on hand to brew up magical potions.

Names & stats for each of the other party characters follow. By carefully experiment, you could work out what each byte means and how to set all party characteristics, and also the position of ships, the balloon, etc.

Once you have STR 99 / DEX 99 / HP 999 and plenty of reagents to unpoison yourself at will it’s pretty easy to get around Britannia sweeping up monsters.

But there was still the matter of the map. We’d got hold of the Sextant by this point, which would give you a latitude & longitude in the format A'B" C'D" where each letter was between A and P. That’s a pretty thinly disguised pair of bytes, so we were pretty confident that the world was:

But how was it stored? The hint came in the form of a rectangle of very weird ocean. When we sailed around the back of the world, to coordinates A’A” A’A”, in the middle of the deepest ocean was a rectangle of … random stuff.

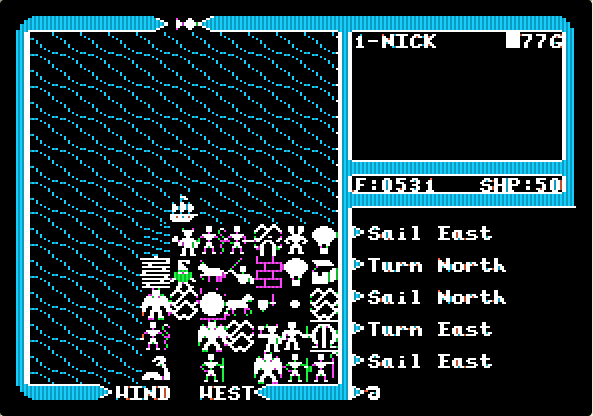

stuff random stuff in the map

It didn’t take too long to work out that was pretty much a 16x16 block, taking up locations A’A” A’A” through A’P” A’P”. While the sea was sea, the monsters weren’t real monsters … just tiles. Indeed, as it turns out the map is stored in 16x16 regions, each taking up one 256 byte disk sector, on the 16 sectors of the first 16 tracks of the disk.

The weird stuff in the ocean? That was a DOS 3.3 boot sector which had been accidentally written to track 0 sector 0 of the unbootable Britannia disk at some time during its pirate misadventures.

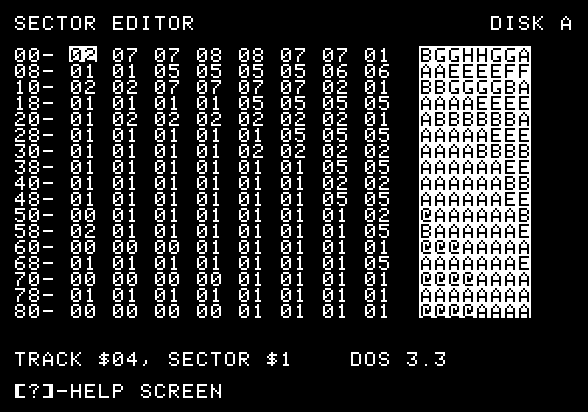

sector map sector editor showing map-like sector

After a while you realize that you can pretty much see the map right there in the sector editor, with each character corresponding to a kind of tile.

It’s interesting to note that there’s plenty of spare room on this disk: the map only uses up 16 tracks out of 35, and the last few tracks are entirely blank.

Cartomancy

Our next step was printing a map from this data.

We designed 7x8 pixel icons for each of the more common map cells and write a program to load two sectors at a time and turn each pair into a 224 x 128 pixel image drawn in the 280x192 “High Resolution Graphics” mode, HGR.

Hang on, why 7x8? Well, as we discovered, each row of the HGR screen is 40 bytes, with seven pixels per byte adding up to 280 pixels per row. The eighth bit shifts between the primary and secondary pallets, a mechanism which was irrelevant to our dot matrix printer and utterly mysterious to us as monochrome monitor users.

Hires Memory Layout Image: xtof.info

Additionally, the HGR memory layout was … a litte eccentric. 24 groups of 8 rows were interleaved, so the maths works out a lot easier if you just stick to the same dimensions as the native Apple II font. Most of the map is composed of just a dozen or so tiles, so we just ignored any other types of tiles.

We then printed screenshots of these images onto hundreds of slips of thermal printer paper, each about 10cm x 5cm. 128 of these small rectangles were then cut out and glued together to form a giant, if rather scruffy, map.

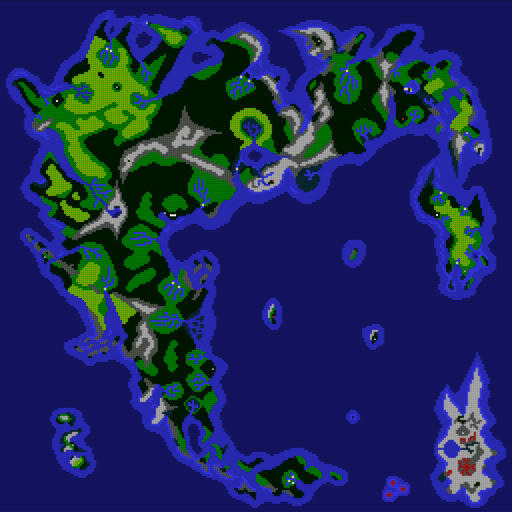

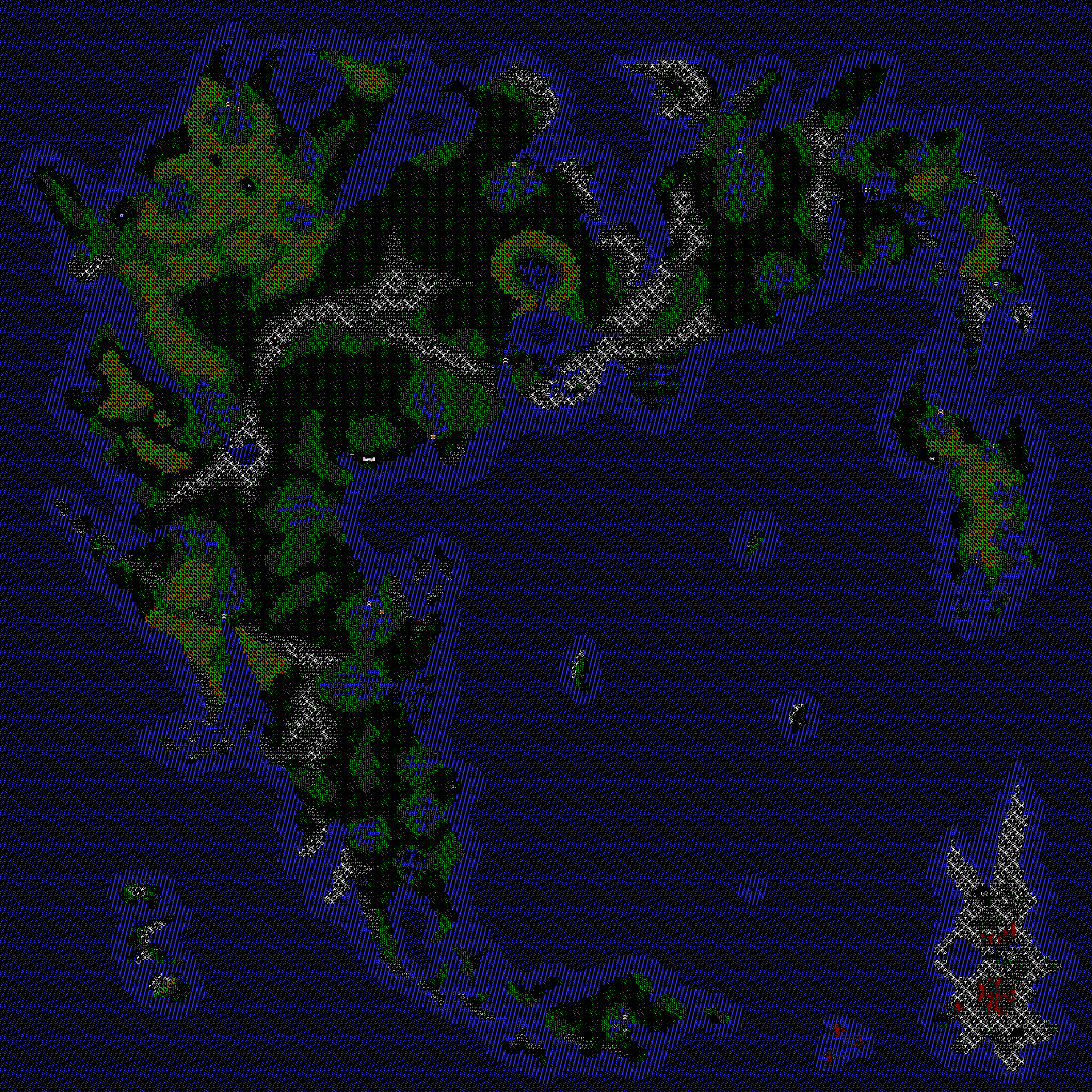

Britannia

Sadly, the physical map and the programs used to produce it are long gone, but years later, I used some resources found online to prduce the following 4096x4096 pixel map using the actual 16x16 tiles from the game.

The towns are stored in a similar manner on the “towns” disk, with each of the town maps having a 32x32 map. That disk also contains all the conversations you can have with townsfolk, so you can learn a lot from it!

There’s more of that sort of thing on this old Ultima IV page of mine.

Nostalgia ain’t what it used to be

So, to recap: to finish Ultima IV you must spend hundreds of hours grinding through enemies, jotting down clues and hints from strange characters in towns, hand-drawing maps of towns and dungeons and exploring a limited world, which turns out to contain a lot more detail than you’d expected.

But you can avoid all that by spending hundreds of hours learning the 6502 instruction set, writing down clues and hints from strange characters in books, hand-drawing maps of disks and memory and exploring a limited world which turns out to contain a lot more detail than you’d expected.

Britannia was created and ruled over by the kindly but distant Lord British, just as the Apple 2 was created and ruled over by the legendary Woz. All those eccentricities and lost evil artefacts: were these truly malicious, or the side-effects of weighty decisions and bargains beyond my youthful understanding?

Ultima IV wasn’t exactly subtle with it’s moral lessons. The importance of paying attention and taking notes, the necessity of building a team to take on bigger challenges, the eightfold system of virtues and of course the quest to rid the world of evil.

Then again, either were the authors of the Apple 2 books, always encouraging curiousity, and patience, and good humour in the face of a limitless challenge.

The point of this story isn’t really Ultima IV. I don’t think we ever even finished the game, in any real sense. Maybe we jumped in our sector editor, equipped all the right things and sailed to the abyss just to see what would happen, but does that even count?

(I suspect the only games I’ve ever really “finished”, in the “without cheating” sense, are Portal and the easiest difficulty of Half Life 2.)

But through this process I learned to see software as observable, mutable, fallible. Looking at how the software behaved led to a theory of how it might be changed, and how those changes might alter the game. But if you altered it too far, unexpected things could occur, things which the game designer never considered.

And that put me on the road I’m on today … just as the Apple 2 eclipsed the System 80, it was eventually dethroned by a PC/AT, and then a ‘286, and a series of PCs, Macbooks, Thinkpads and iPads.

The machine I’m producing this video on on has a processor thousands of times as fast as a 6502 and about one million times as much free RAM as that Apple had. The MAME emulator I used to capture the video used in this presentation doesn’t just run the game, it emulates the CPU, and the disk drives, and even the physical limitations of the monitor.

But the core principles remain the same: these fantastic machines are a reflection of our human minds, our human limitations. Computers enable our imagination, but they are also a product of our imagination, and it is up to us to decide how to use them.

Back in the early ’80s, Dad brought home more than a computer and a dusty box of pirate floppies. He brought home a whole world. My kids are about the same age now as I was then, and I wonder: what am I bringing home to them, what quest will they embark upon?

Journey Onward! and all the best of luck …

Acknowledgements

Thanks to my family, then and now, for encouraging and joining me in this journey.

Also thanks to Steve Wozniak, Richard Garriot, the Beagle Brothers and Mangrove Earthshoe, and of course many others, for that early inspiration, and to the creators of MAME and the Apple Documentation project for keeping the world of the Apple 2 alive.

And thanks to you for listening!
